Darktrace

This article describes the steps to configure syslog forwarding for Darktrace.

Prerequisites​

  • Configure Darktrace to send logs.

  • Ensure you are a Darktrace Administrator with access to the User Interface.

To configure syslog forwarding for Darktrace:​

  1. Log in to the Darktrace interface.

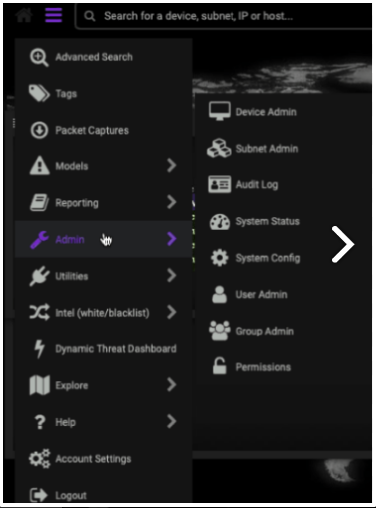

  2. Expand the top left menu and select Admin. A second menu appears.

  3. Select the System Config page.

  4. In the Alerting section, click Verify Alert Settings.

  5. Set the following parameters:

    • CEF Syslog Alerts as True.

    • The syslog server to the IP address of the DNIF Adapter.

    • Set a unique port.

    • CEF Syslog TCP Alerts as True.

      image 1-Dec-04-2023-09-11-58-6567-AM

  6. Darktrace will automatically save your changes.

  7. In the Alerting section, click Verify Alert Settings.

    image 1-Dec-04-2023-09-11-58-6567-AM

  8. You will view 1 Alert Sent. IMAP settings are valid message, on validating.
